Servicing, Servicing Sequence

Servicing

Compiled by Dot

K series

In order to maintain warranty validation and help ensure proper safety, emissions performance and dependability of the vehicle, Lotus Cars Ltd. requires that the vehicle be serviced in accordance with this schedule. Each service should be performed either within 1000 miles (1600 kms) of the distance stipulated, or within one month of the anniversary of the previous service, whichever first occurs. Any necessary repairs should be completed without delay.

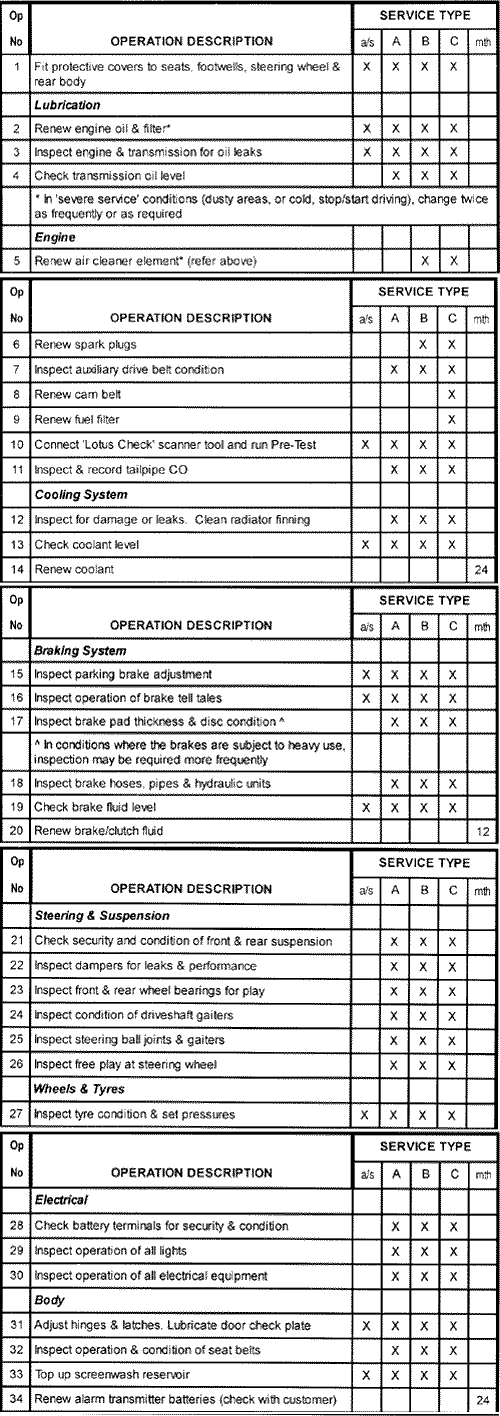

A cross (X) in the following table indicates an operation to be performed. The corresponding box should be ticked when the operation has been satisfactorily performed, or the X circled if extra work and time is required. The approval of the customer should be obtained before any extra work is undertaken, details of which should be recorded in the space provided at the end of the schedule.

After Sales Service: There is no charge to the vehicle owner for the labour content of the After Sales Service. Only materials used will be charged.

Inspect means assess condition and test for correct operation. Extra time is required to adjust or repair - advise customer beforehand if necessary.

Check means test and adjust/fill or tighten as necessary. Labour time is included.

There are four types of services for the Elise:
1) After sales Service (AS)
2) A Service (A)
3) B Service (B)
4) C Service (C)

Servicing Sequence

Note that for some variants (Sport 160/190, Exige), the service interval is every 6000 miles instead of the usual 9000 miles. A service sequence of A,B,A,B,A,C on these cars so that the spark plugs are replaced every other service is recommended, but some service record books were not updated.

Cam belts

Lotus have amended the original schedule and now recommend changing cam belts at least every four years rather than the original six, this will often mean services can become "A+belts", "B+belts", or "C-belts" depending on age and mileage. From the Group Lotus Aftersales bulletin ...

The synthetic cam belt used on Rover powertrain Elise models is subject to age, as well as usage degradation, and will be adversely affected by any contamination with oil or coolant. In order to bring cam-belt time servicing in line with current Rover recommendations the Service Schedule for all Rover powertrain Elise models was revised in October 2003 to stipulate a cam belt replacement time interval of 4 years (54,000miles/90,000km), with an inspection every 2 years (27,000miles/45,000km). For 340R/Sport 160/Exige models, the corresponding distance intervals are 36,000miles/60,000km, and 18,000miles/30,000km.

Toyota Schedule
