Lotus Offical Part Numbers - Dashboard and Pedals

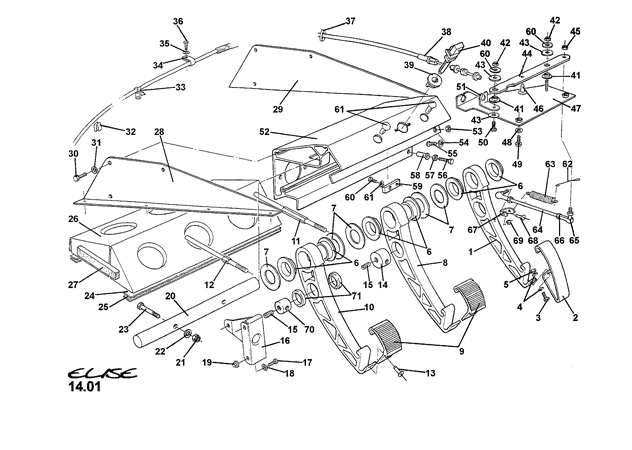

Pedal Box, Pedals, Throttle Cable
| Item | Qty | Part Number | Description | Notes | Models |
|---|---|---|---|---|---|
| 01 | 1 | C111J0018F | Throttle Pedal | ||
| 01a | 1 | C111J0016J | Throttle Pedal Assembly | ||
| 02 | 1 | A111J0081F | Pad, throttle pedal | ||
| 03 | 1 | A075W1085F | Setscrew, M5 x 16, pad to arm retention | ||
| 04 | 2 | A075W4011Z | Washer, M5 x 10 x 1.0, pad to arm retention | ||
| 05 | 1 | A075W3008Z | Nyloc Nut, M5,pad to arm retention | ||
| 06 | 6 | A111J6018F | Bearing, pedal pivots | ||
| 07 | 5 | A111J6019F | Thrust Washer, pedal pivots | ||
| 08 | 1 | B111J0069F | Brake Pedal | ||
| 08a | 1 | B111J0070F | Brake Pedal Assembly | ||
| 09 | 2 | C111J0019F | Pad, brake & clutch pedals | ||
| 10 | 1 | C111J0017F | Clutch Pedal | ||
| 11 | 1 | A111J0041F | Push Rod, brake master cylinder | ||
| 12 | 1 | A111J0042F | Push Rod, clutch master cylinder | ||
| 13 | 2 | A075W6068Z | Pop Rivet, 5/32" x 1/2", pad fix. | ||
| 14 | 2 | A111J0039F | Trunnion, brake & clutch push rods | ||
| 15 | 2 | A111W7147F | Grubscrew, M6 x 6, push rod locking | ||
| 16 | 1 | A111A0103F | Driver Footrest, RHD | ||
| 16a | 1 | A111A0104F | Driver Footrest, LHD | ||
| 17 | 3 | A076W5090F | Screw, M6 x 16, pozi, footrest fix. | ||
| 18 | 3 | A075W4046Z | Washer, shakeproof, M6, footrest fix. | ||
| 19 | 3 | A100W3108F | Locknut, M6, footrest fix. | ||
| 20 | 1 | B111J0038F | Pedal Shaft | ||
| 21 | 2 | A075W3009Z | Nyloc Nut, M6, shaft fix. | ||
| 22 | 2 | A075W4013Z | Washer, flat, M6, shaft fix. | ||
| 23 | 2 | A075W1033Z | Screw, M6 x 35, hex. hd., shaft fix. | ||
| 24 | 1 | A111V6020V | Grip-Lock, self adhesive, hook (0.6m) | ||
| 25 | 1 | A111V6019V | Grip-Lok, self adhesive, loop (0.6m) | ||
| 26 | 1 | B111A0101J | Passenger Footrest Assembly, RHD | ||
| 26a | 1 | B111A0102J | Passenger Footrest Assembly, LHD | ||
| 27 | 1 | A082U6065V | Foam Seal, 25 x 12.5 | ||
| 28 | 1 | B111J0033F | Side plate, pedal box, LH | ||
| 29 | 1 | B111J0034F | Side plate, pedal box, RH | ||
| 30 | 6 | A111W1155F | Screw, M6 x 20, hex. hd., side plate fix. | ||
| 31 | 6 | A075W4035Z | Washer, spring, M6 | ||
| 32 | 1 | A082W6370F | Clip, throttle cable to manifold fix. | ||
| 33 | 1 | A089W6268F | Clip, throttle cable to canister pipe fix. | ||
| 34 | 1 | A111W6611F | 'P' Clip, throttle cable to sump | ||
| 35 | 1 | A075W4048Z | Washer, shakeproof, M8, 'P' clip to sump | ||
| 36 | 1 | A075W1038Z | Setscrew, M8 x 20, 'P' clip to sump | ||
| 37 | 1 | A082W6324F | Tie Wrap, throttle cable fix. | ||
| 38 | 1 | A111J0114F | Throttle Cable | ||
| 38a | 1 | A111J0140S | Throttle Cable, 190 engine | Part of VHPD 190 engine kit | MOTORSPORT |
| 39 | 1 | A089M6020F | Collar, brake light switch fix. | ||
| 40 | 1 | A089M6019F | Brake Light Switch | ||
| 41 | 1 | A111J6017J | Bush, nylon, relay lever | ||
| 42 | 1 | A075W3049F | Nyloc Nut, M4 | ||
| 43 | 1 | A111J6016F | Thrust Washer, nylon, relay lever | ||
| 44 | 1 | B111J0045F | Relay Lever, throttle linkage | ||
| 45 | 1 | A100W3113F | Nut, nyloc, M5 | ||
| 46 | 1 | A111J6020F | Slider Button, relay lever | ||
| 47 | 1 | C111J0048F | Base Plate, relay lever, RHD | ||
| 47a | 1 | D111J0047F | Base Plate, relay lever, LHD | ||
| 48 | 2 | A075W4054Z | Washer, shakeproof, M5, base plate fix | ||
| 49 | 2 | A082W5097F | Screw, M5 x 10, pozi, base plate fix. | ||
| 50 | 2 | A100W5133F | Screw, M4 x 16, pozi, swivel fix. | ||
| 51 | 1 | A111J0043F | Swivel, throttle linkage | ||
| 52 | 1 | B111J0054J | Pedal Box Assembly | ||
| 53 | 1 | A075W3008Z | Nyloc Nut, M5 | ||
| 54 | 1 | A111W4168F | Washer, flat, M5 x 10 x 0.8, | ||
| 55 | 1 | A111W7138F | Screw, M5 x 12, button hd. | ||
| 56 | 1 | A075W1033Z | Setscrew, M6 x 35, throttle pedal stop | ||
| 57 | 1 | A082W3085F | Nut, M6, nyloc, throttle pedal stop | ||
| 58 | 1 | A079W6156F | Pullsert, M6 x 1.0 | ||
| 59 | 1 | A111J0083F | Nut Plate, pedal box | ||
| 60 | 2 | A075W1021Z | Screwset, M5 x 12, hex. hd. | ||
| 61 | 2 | A075W4011Z | Washer, flat, M5 x 10 x 1.0 | ||
| 62 | 1 | A111J0096F | Link, throttle spring, RHD | ||
| 62a | 1 | A111J0097F | Link, throttle spring, LHD | ||
| 63 | 1 | A075J6029Z | Throttle Return Spring | ||
| 64 | 1 | A111J0044F | Pull Rod Assembly, throttle linkage | ||
| 65 | 2 | A111J6015F | Ball Joint, pull rod | ||
| 66 | 2 | A082W3088F | Locknut, M5, ball joint pull rod | ||
| 67 | 1 | B111J0046F | Bracket, throttle pedal to pull rod | ||
| 68 | 1 | A075W6087Z | Pop Rivet, 3/16", bracket to throttle pedal | ||
| 69 | 2 | A100W3113F | Nyloc Nut, M5, throttle pedal link fix. | ||
| 70 | 2 | A111J06020F | Blanking plug | ||
| 71 | 1 | A111J0155F | Trunnion, clutch pedal | Can be retro fitted if required | VIN: X7261 on |
| 72 | 2 | A111J6036F | Bush, synthetic, clutch pedal trunnion | Can be retro fitted if required | VIN: X7261 on |
| 73 | 1 | A111F6016V | Grease, molycote DC33 medium, pedal bush lube | Not illustrateds |

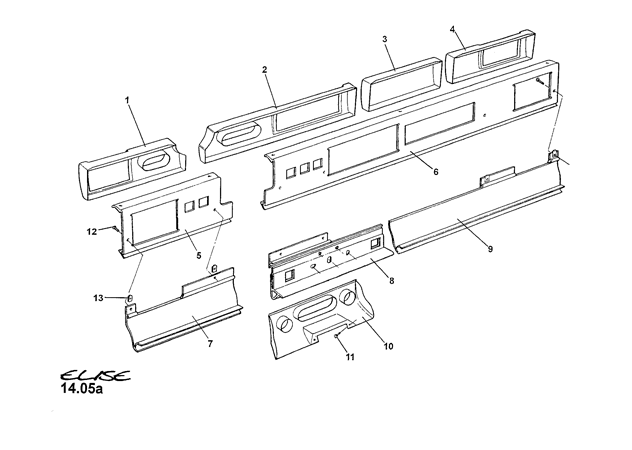

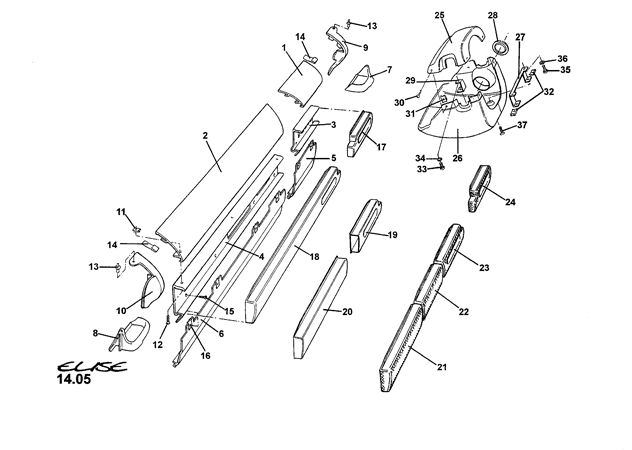

Fascia Structure & Supporting Hardware
| Item | Qty | Part Number | Description | Notes | Models |
|---|---|---|---|---|---|
| 01 | 1 | B111U0106F | Dash Panel Upper, driver's side (short) | RHD | |
| 01a | 1 | B111U0105F | Dash Panel Upper, driver's side (short) | LHD | |
| 02 | 1 | B111U0108F | Dash Panel Upper, passenger's side (long) | RHD | |
| 02a | 1 | B111U0107F | Dash Panel Upper, passenger's side (long) | LHD | |
| 03 | 1 | B111U0110F | Dash Panel Middle, driver's side (short) | RHD | |
| 03a | 1 | B111U0109F | Dash Panel Middle, driver's side (short) | LHD | |
| 04 | 1 | B111U0112F | Dash Panel Middle, passenger's side (long) | RHD | |
| 04a | 1 | B111U0111F | Dash Panel Middle, passenger's side (long) | LHD | |
| 05 | 1 | B111U0113F | Dash Panel Lower, driver's side (short) | RHD/LHD | |
| 06 | 1 | B111U0114F | Dash Panel Lower, passenger's side (long) | RHD/LHD | |
| 07 | 1 | A111V0086K | Coin Tray, RH | ||
| 08 | 1 | A111V0087K | Coin Tray, LH | ||
| 09 | 1 | A111V0056K | Finisher, dash end, RH | ||
| 10 | 1 | A111V0057K | Finisher, dash end, LH | ||
| 11 | 6 | A075W6016Z | Spire Nut | Dash middle to upper | |
| 12 | 6 | A111W5215F | Screw, No 8 x 3/4", csk. pozi. | Dash middle to upper | |
| 13 | 2 | A082W6515F | Plastic Rivet | Dash end finishers | |
| 14 | 4 | A111B0190F | Spring Clip, anti-rattle | ||
| 15 | 6 | A075W5026Z | Screw, No, 6 x 3/4, csk. pozi. | Dash middle to lower | |
| 16 | 6 | A082W6239F | Spire Nut | Dash middle to lower | |
| 17 | 1 | A111V0069K | Dash Infill Panel, driver's side (short) | RHD | |
| 17a | 1 | A111V0071K | Dash Infill Panel, driver's side (short) | LHD | |
| 18 | 1 | A111V0079K | Dash Infill Panel, passenger's side (long) | RHD | |
| 18a | 1 | A111V0081K | Dash Infill Panel, passenger's side (long) | LHD | |
| 19 | 1 | A111V0073K | Dash Infill Panel, centre | Part of radio fitting kit | RHD |
| 19a | 1 | A111V0075K | Dash Infill Panel, centre | Part of radio fitting kit | LHD |
| 20 | 1 | A111V0077K | Dash Infill Panel, passenger's side | Part of radio fitting kit | RHD/LHD |
| 21 | 1 | A111V0446K | Dash Infill Panel, weave pattern, passenger's side | RHD/LHD - 111S | |
| 21a | 1 | A111V0398K | Dash Infill Panel, senotex, passenger's side | From 111S intro., Jan 99 |
RHD/LHD - standard car |
| 22 | 1 | A111V0448K | Dash Infill Panel, weave pattern, radio blanking | RHD/LHD - 111S | |
| 22a | 1 | A111V0546K | Dash Infill Panel, senotex, radio blanking | From 111S intro., Jan 99 |
RHD/LHD - standard car |
| 23 | 1 | A111V0444K | Dash Infill Panel, weave pattern, switches/htr. conts., LH | RHD/LHD - 111S | |
| 23a | 1 | A111V0391K | Dash Infill Panel, senotex, switches/htr. conts., LH | From 111S intro., Jan 99 |
RHD/LHD - standard car |
| 24 | 1 | A111V0442K | Dash Infill Panel, weave pattern, switches/htr. conts. | RHD/LHD - 111S | |
| 24a | 1 | A111V0390K | Dash Infill Panel, senotex, switches/htr. conts. | From 111S intro., Jan 99 |
RHD/LHD - standard car |
Fascia Structure & Supporting Hardware - AC CARS
| Item | Qty | Part Number | Description |
|---|---|---|---|
| 01 | 1 | A111V0268K | Infill Panel, driver's side, single vent. RHD |
| 02 | 1 | A111V0270K | Infill Panel, centre, twin vent. RHD |
| 03 | 1 | A111V0281K | Blanking Panel, radio aperture RHD |
| 04 | 1 | A111V0278K | Infill Panel, passenger's side, single vent. RHD |
| 05 | 1 | A111U0364F | Dash Panel Middle, driver's side (short) RHD |
| 06 | 1 | A111U0366F | Dash Panel Middle, passenger's side (long) RHD |
| 07 | 1 | A111U0360F | Dash Panel Lower, driver's side (short) RHD |
| 08 | 1 | A111U0370F | AC Switch Panel RHD |
| 09 | 1 | A111U0362F | Dash Panel Lower, passenger's side (long) RHD |
| 10 | 1 | A111V0290K | Trim Panel, AC switches RHD |
| 11 | 2 | A075W5012F | Screw, No,6 x 1/2", fig. hd. pozi. Trim panel to dash |
| 12 | 6 | A075W5026Z | Screw, No.6 x 3/4", csk. pozi. Dash middle to lower |
| 13 | 6 | A082W6239F | Spirenut. Dash middle to lower |

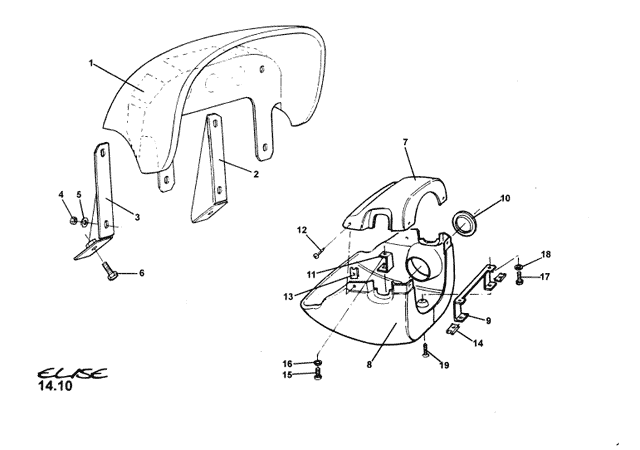

Instrunent BINNACLE
| Item | Qty | Part Number | Description | Notes |
|---|---|---|---|---|
| 01 | 1 | A111U0146J | Instrument Binnavle Assembly | |
| 02 | 1 | C111U0156F | Bracket, instrument mounting, RH | |
| 03 | 1 | C111U0155F | Bracket, instrument mounting, LH | |
| 04 | 4 | A075W3019F | Nut, M4 | Instrument pack to brackets |
| 05 | 4 | A082W4099F | Washer, flat, M4 x 9 x 0 8 | Instrument pack to brackets |
| 06 | 2 | A100A6024F | Screw, M6 x 15, hex. hd. | Brackets to dash |
| 07 | 1 | B111V0059K | Cowling, steering column, upper | |
| 08 | 1 | A111V0062K | Cowling, steering column, lower, RHD | |
| 08a | 1 | A111V0063K | Cowling, steering column, lower, LHD | |
| 09 | 1 | A111V0127F | Bracket, steering column cowling front | |
| 10 | 1 | A100V6081F | Grommet, steering lock to cowling | |
| 11 | 1 | A111V0128F | Bracket, steering column cowling rear | |
| 12 | 4 | A075W5012F | Screw No 8 x 3/4, csk. pozi. | Upper to lower cowling |
| 13 | 4 | A079W6024F | Spire Nut M6 | Upper to lower cowling |
| 14 | 3 | A075W6016Z | Spire Nut M8 | Cowling to brackets |
| 15 | 2 | A075W5040Z | Screw No 10 x 1/2 | Bracket to column rear |
| 16 | 2 | A075W4011Z | Washer M5 | Bracket to column rear |
| 17 | 1 | A075W5079F | Screw M4 x 10mm | Bracket to column front |
| 18 | 1 | A075W4086F | Washer M4 int shakeproof | Bracket to column front |
| 19 | 3 | A075W5074F | Screw No 8 x 3/4" | Cowling to brackets |
